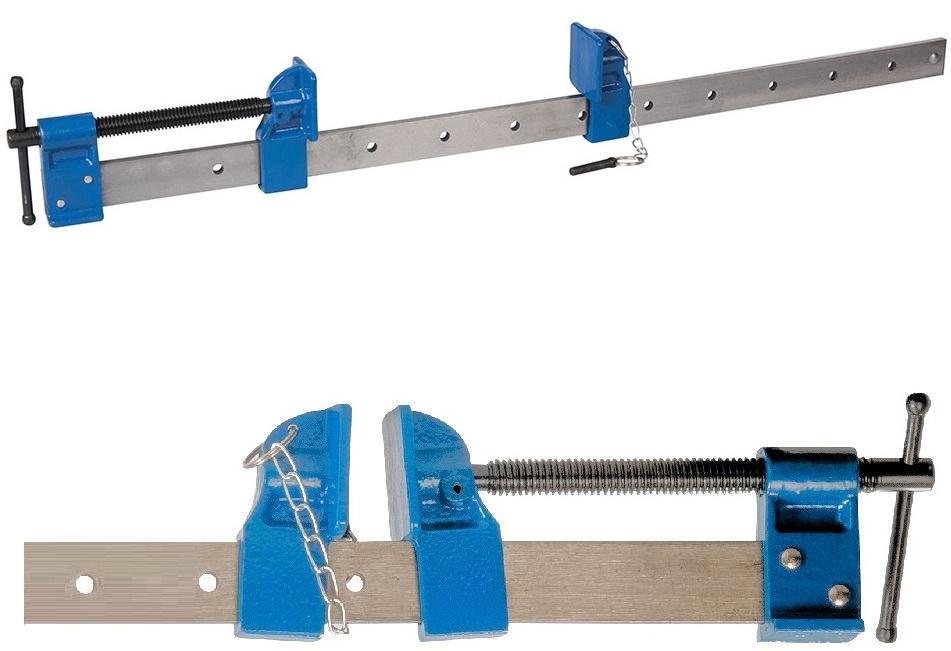

Silverline Tools Expert Heavy Duty Sash Clamp – 600mm (633632)

Silverline Expert Heavy Duty Metal Sash Clamp – 600mm Length for Woodworking and Metalwork

MPN: 633632  Barcode: 5055058145482

This 600mm heavy-duty metal sash clamp provides firm and consistent clamping pressure for woodworking and metalwork applications, featuring a steel bar with cast iron components and tool-free adjustment.

Who This Product Is For

This sash clamp suits furniture makers, cabinet makers, and workshop users who require accurate clamping for assembly work.

It works for projects involving timber frame construction, metal fabrication, and joinery where square alignment and consistent pressure are needed.

Key Features

• Cast Iron Clamp Head and Foot: Provides strong clamping force and maintains structural shape under pressure.
• Serrated Steel Bar: Delivers smooth sliding and stable positioning during adjustments.
• Sliding Pin System: Allows for quick length changes without tools, saving time on repetitive tasks.
• Pin Retention Chain: Prevents pin loss and keeps the tool complete and ready for use.
• Uniform Jaw Alignment: Keeps clamping pressure even and projects square.
• 600mm Clamp Length: Provides extended reach for larger panels and frameworks.

Key Benefits

• Improves build accuracy with steady and consistent pressure.
• Speeds up setup time thanks to tool-free adjustment.
• Reduces risk of distortion during clamping.
• Strong construction supports repeated use in demanding environments.

Practical Applications

The heavy-duty sash clamp performs well in cabinet making, furniture assembly, and metal framework builds. Its solid build supports:

• Panel Glue-Ups: Keeps boards flat and aligned while adhesives cure.
• Frame Assembly: Holds components square for accurate joins.
• Metal Fabrication: Provides firm clamping without warping steel or aluminium pieces.
• Joinery Projects: Helps achieve tight fit-ups for mortise and tenon work.
• Worktop Installation: Maintains tight joints during bonding and securing.

How This Fits Into a Typical Job

This clamp is used during the assembly phase of projects, after components have been cut and prepared but before final finishing. It holds workpieces in position while adhesives cure or while mechanical fasteners are installed.

The tool-free adjustment system allows for rapid positioning changes between different clamping points, making it suitable for multi-stage assembly processes where components need to be held square at various stages.

How to Use

1. Surface Preparation:
   • Make sure all contact surfaces are clean and flat.
   • Remove debris or old adhesive to avoid uneven pressure.
2. Positioning:
   • Place the clamp under or around your workpiece.
   • Align the jaws to fit the material length.
3. Adjustment:
   • Slide the movable head into position using the pin mechanism.
   • Insert the retaining pin to lock it in place.
4. Clamping:
   • Turn the screw handle to apply even pressure.
   • Monitor alignment to keep joints square.
5. Release:
   • Loosen the screw handle gently.
   • Remove the pin and slide the head back to release your work.

Storage and Maintenance

• Wipe metal surfaces after use to prevent moisture-related corrosion.
• Store in a dry environment to protect the bar and screw thread.
• Apply oil to the screw thread periodically for smoother operation.

Not Suitable For

• Applications requiring clamping pressure beyond the tool’s rated capacity
• Projects needing clamping lengths shorter than the minimum adjustment range
• Environments with continuous exposure to moisture without protective measures

Add the Silverline Heavy Duty Metal Sash Clamp to your toolkit today and gain better control and consistent performance on every task. Whether you’re working with timber or metal, this clamp delivers solid results you can count on.

• Specification

  Weight	2.2 kg
  Material	Cast iron, steel
  Guarantee	Silverline Tools Guarantee
  Length	600mm
  Reference Code	633632
  Manufacturer	Silverline Tools
  Type	Sash Clamp

• Product FAQs

  Q: What is the maximum clamping capacity of a 600mm sash clamp?
  A: A 600mm sash clamp typically allows for clamping materials up to around 550mm wide, depending on how far the moving head can travel.
  Q: Is this clamp suitable for heavy-duty woodworking?
  A: Yes, it’s designed to hold timber and joinery pieces firmly in place during gluing or assembly, making it suitable for heavier tasks.
  Q: Can I adjust the length quickly without tools?
  A: Yes, the sliding pin mechanism allows you to reposition the head swiftly without needing spanners or wrenches.
  Q: Does the bar stay secure during use?
  A: The serrated steel bar helps prevent slippage by locking into place when under pressure, offering a consistent grip throughout the job.
  Q: What materials is this clamp best used on?
  A: This type of clamp is commonly used on wood, but it can also be used with metal or composite materials where steady alignment is required.
  Q: How do I maintain grip alignment when tightening?
  A: Make sure both heads are square against your work surface before tightening, and avoid overtightening, which can pull pieces out of alignment.
