Silverline Tools Expert Heavy Duty Metal Sash Clamp – 1200mm (675132)

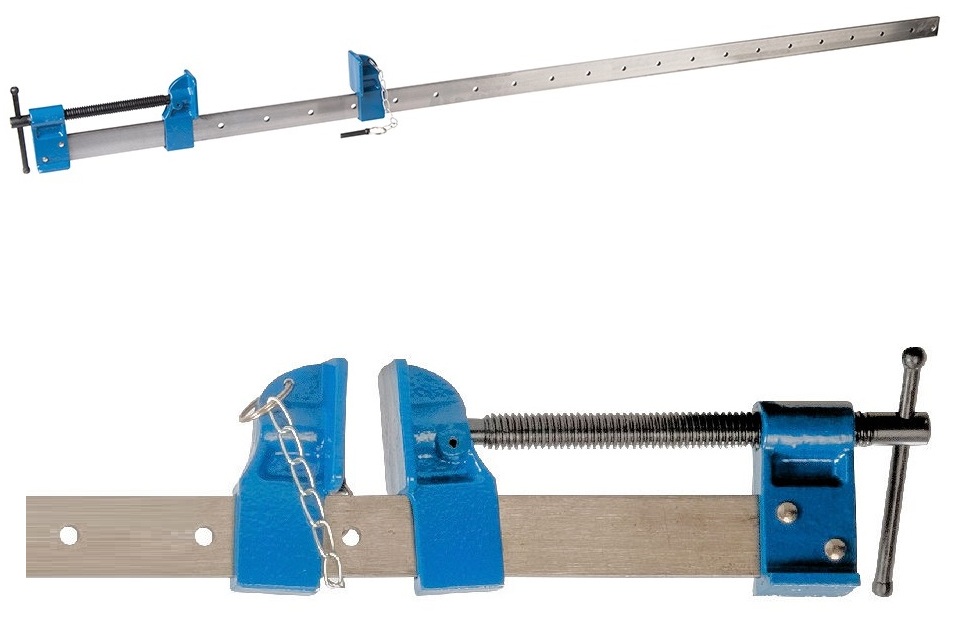

Silverline Expert Heavy Duty Metal Sash Clamp – 1200mm

MPN: 675132 | Barcode: 5055058145512

The Silverline Expert Heavy Duty Metal Sash Clamp delivers consistent clamping for large-scale woodworking and metalworking tasks.

Who This Product Is For

This clamp suits professional woodworkers and metalworkers, as well as serious DIY users undertaking substantial projects.

It works for workshop environments and site work where large components need secure, square clamping during assembly, fabrication, or finishing operations.

Key Features

• Cast Iron Head and Foot: Provides lasting strength and consistent grip for high-pressure clamping.
• Serrated Steel Bar: Enables fast, secure jaw adjustments to suit different workpiece sizes.
• Chain-Attached Locking Pin: Prevents pin loss during projects or storage.
• Accurate Jaw Alignment: Keeps components square for accurate joins.
• Acme Thread Mechanism: Offers smooth operation with steady, non-slip clamping force.
• Large Capacity: Holds workpieces up to 1084mm wide with a travel of 1170mm.

Practical Applications

The Silverline Expert Heavy Duty Metal Sash Clamp works well for:

• Assembling timber frames, furniture, and cabinetry.
• Holding panels or boards for cutting, joining, or gluing.
• Securing materials during welding or fabrication.
• Keeping door frames and windows aligned during fitting.

How This Fits Into a Typical Job

This clamp is used during the assembly phase of projects, after materials have been cut and prepared but before final fixing or finishing.

It provides temporary, adjustable pressure to hold components in the correct position while glue sets, welds cool, or mechanical fixings are installed, ensuring alignment remains accurate throughout the process.

How to Use

1. Prepare the Materials: Align workpieces and make sure they are free from dust or residue.
2. Position the Clamp: Slide the movable jaw along the bar to fit your project.
3. Lock the Jaw: Insert the attached pin into the nearest slot to secure the position.
4. Apply Pressure: Turn the handle clockwise to tighten the jaws and create a firm hold.
5. Check Alignment: Confirm the clamp holds the workpiece square before proceeding.
6. Release: When work is complete, loosen the handle and remove the clamp carefully.

Specifications

• Length: 1200mm
• Maximum workpiece width: 1084mm
• Travel: 1170mm
• Construction: Steel bar with cast iron head and foot
• Mechanism: Acme thread with serrated bar
• Pin retention: Chain-attached locking pin

Storage and Maintenance

• Wipe the steel bar and threads after each use to prevent corrosion.
• Store in a dry, organised space to protect moving parts.
• Inspect threads and jaws periodically to keep the operation smooth.

Add the Silverline Expert Heavy Duty Metal Sash Clamp to your toolkit today and achieve stronger, more accurate results on every large-scale project.

Silverline Tools Guarantee

All Silverline hand tools are backed by a lifetime guarantee, covering defects caused by faulty materials or poor workmanship. This applies from the date of purchase and remains valid for the life of the product. Tools that are not classified as hand tools are covered by a 3-year guarantee, unless stated otherwise. General wear from regular use is not covered under this policy. For example, blade sharpness will naturally reduce over time and is considered standard wear.

To activate the extended guarantee, registration is required. You can complete this process online by visiting the official Silverline Tools website: Register Your Product.

• Specification

  Weight	5.1 kg
  Manufacturer	Silverline Tools
  Reference Code	675132
  Type	Expert Sash Clamp
  Length	1200mm
  Quantity	1
  Material	Steel, Cast iron
  Guarantee	Silverline Tools Lifetime Guarantee with registration

• Product FAQs

  Q: What size workpieces can this clamp hold?
  A: It can securely grip items up to approximately 1084mm wide, with a travel distance of around 1170mm, making it suitable for larger assemblies and panels.
  Q: How do you adjust the clamp to fit your project?
  A: Slide the movable jaw along the steel bar to the required length, insert the locking pin, and then tighten the handle using the threaded mechanism until you have the desired pressure.
  Q: Can it be used for metalwork as well as woodwork?
  A: Yes, it’s suitable for both timber and metal projects, including welding, joinery, and frame construction, provided you position and tighten it correctly.
  Q: Does it keep the workpiece square during clamping?
  A: Yes, the jaws are designed to maintain alignment, helping to keep corners and edges square while you work.
  Q: What’s the best way to store it when not in use?
  A: Keep it clean, dry, and in an organised tool space. Wiping the bar and threads after use helps prevent rust and keeps the mechanism moving smoothly.
  Q: Is any maintenance required for long-term performance?
  A: Regularly check the threads and jaws for dust or debris, and give them a quick wipe-down after each job to maintain smooth operation and consistent grip.
