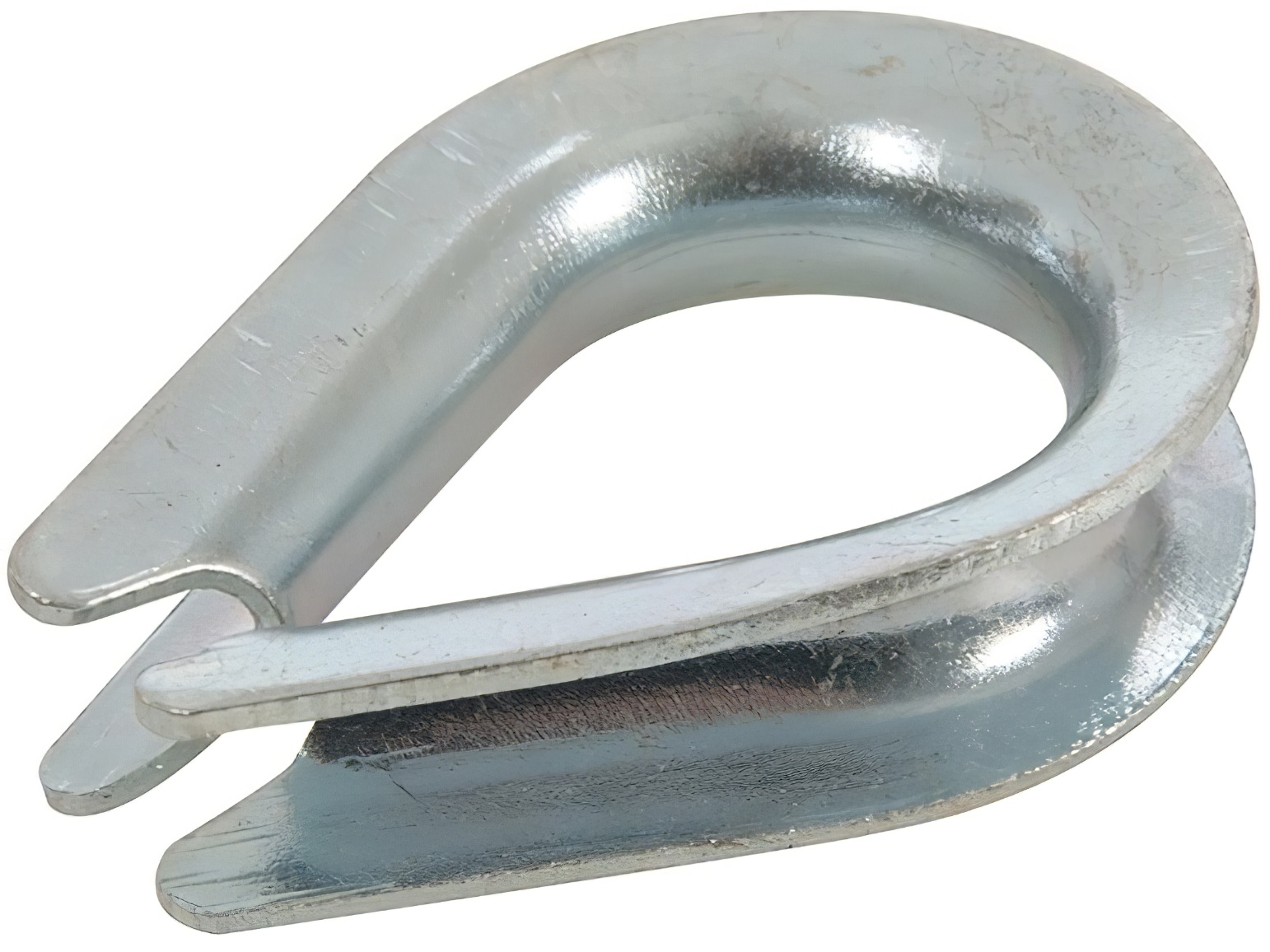

Fixman Galvanised Wire Rope Loop Eye Thimble M6 for Wire Protection (353151)

Fixman Wire Rope Loop Eye Thimble Galvanised M6 6mm (Pack of 10)

MPN: 353151

Barcode: 5024763142482

Designed for protecting and forming cable eyes in wire ropes, this pack of 10 thimbles offers a reliable solution for tasks such as fencing, tensioning, and security applications.

Who This Product Is For

These thimbles are designed for professionals and serious DIY users who work with wire rope systems. This includes fencing installers, rigging specialists, and those involved in security installations.

They suit jobs requiring secure cable termination points, including fencing construction, tensioned wire systems, equipment securing, and general rigging applications where durability is needed.

Key Features

• Galvanised Steel Construction: Offers exceptional resistance to rust, giving consistent performance even in challenging conditions.
• Weatherproof Build: Designed to endure prolonged exposure to the elements, maintaining functionality over time.
• Cable Eye Protection: Safeguards wire rope loops from wear, reducing the risk of damage during use.
• Tailored Fit for 6mm Cables: Engineered for precise compatibility with 6mm wire ropes, enhancing stability and efficiency across applications.
• Multipurpose Application: Suitable for a variety of uses, from securing fences to handling general rigging needs.

Key Benefits

• Extends the lifespan of wire ropes by minimising wear and tear on cable eyes.
• Reliable performance in both indoor and outdoor settings.
• Reduces the need for frequent replacements, offering cost-effectiveness over time.
• Simplifies the process of creating secure and durable cable loops for various projects.

Practical Applications

The Fixman Wire Rope Loop Eye Thimbles excel in roles requiring secure and enduring cable loops. Use them for installing fencing, creating tensioned wire setups, or securing equipment in place. Their robust design ensures effective performance across multiple scenarios, whether indoors or outdoors.

How This Fits Into a Typical Job

These thimbles are used during the termination phase of wire rope installation. After cutting the wire rope to length and forming a loop, the thimble is inserted to protect the cable eye. The system is then secured with clamps before tension is applied, completing a durable connection point ready for load-bearing use.

The thimble serves as a protective component that prevents cable damage at the critical termination point, forming part of a complete wire rope assembly system.

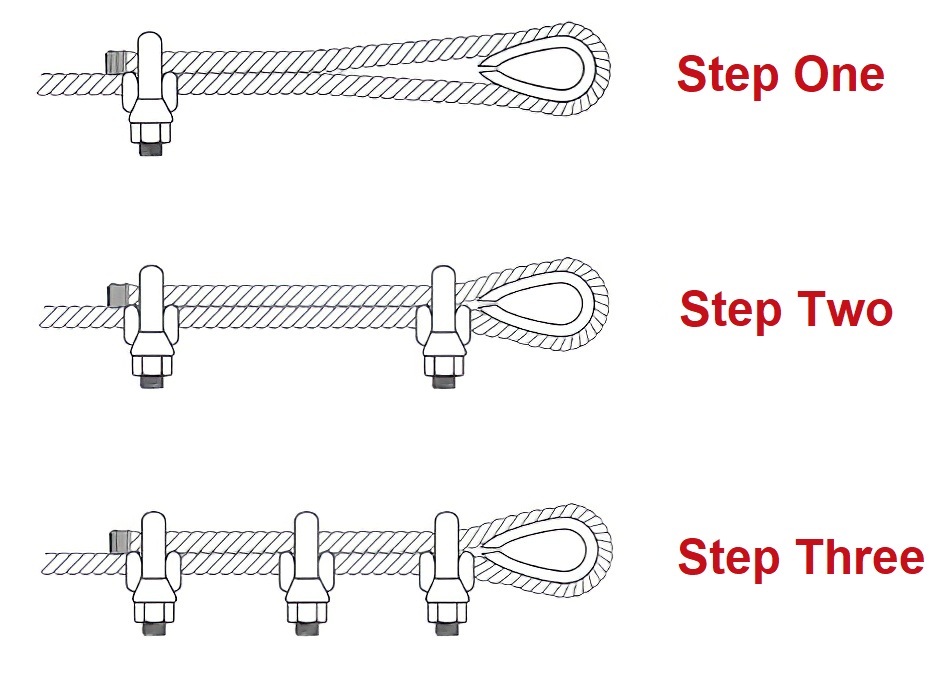

How to Use

1. Prepare the Wire Rope: Cut the wire rope to the desired length and make sure the ends are clean and free from fraying.
2. Insert the Thimble: Place the thimble into the loop formed at the end of the wire rope.
3. Secure the Loop: Wrap the wire rope around the thimble snugly, so it fits tightly within the groove.

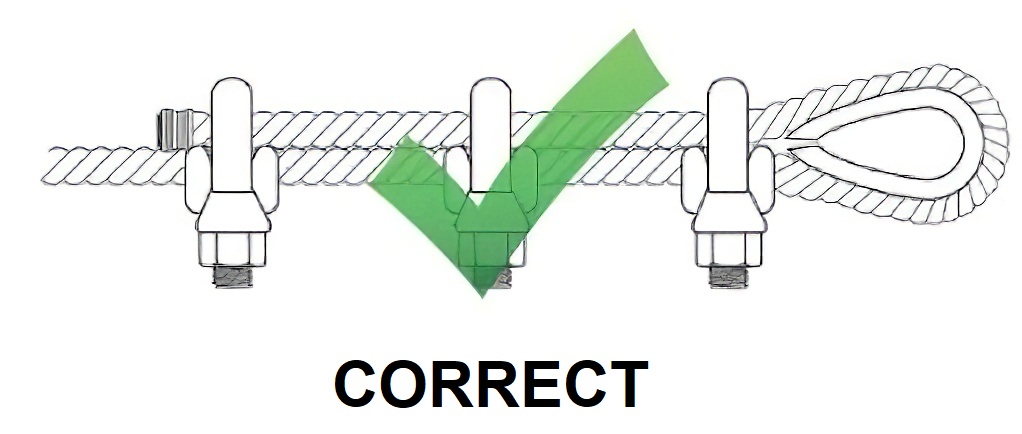

4. Fasten with a Clamp: Use a wire rope clamp to lock the loop in place, making sure it is firmly secured to prevent slippage.
5. Inspect the Connection: Check the assembly to confirm all components are properly fitted before applying tension.

Storage and Maintenance Tips

• Store the thimbles in a dry location to prevent premature corrosion.
• Regularly inspect wire ropes and thimbles for signs of wear or damage, replacing any compromised components promptly.
• Clean thimbles after use to remove dirt or debris, helping maintain optimal performance during their next application.

Order the Fixman Wire Rope Loop Eye Thimble Galvanised M6 6mm (Pack of 10) today and experience a practical solution for secure and long-lasting cable management in your projects.

• Specification

  Weight	0.159 kg
  Reference Code	353151
  Size	M6
  Manufacturer	Fixman
  Type	Wire Rope Loop Eye Thimble Galvanised
  Number of Parts	Pack of 10

• Product FAQs

  Q: What are these thimbles used for?
  A: These thimbles are used for forming and protecting cable loops in wire ropes, making them ideal for fencing, securing equipment, and general rigging tasks.
  Q: Can these thimbles be used outdoors?
  A: Yes, the galvanised steel construction ensures they are resistant to rust and capable of withstanding outdoor environments.
  Q: Are these suitable for heavy-duty projects?
  A: While they are durable, their specific compatibility with 6mm wire ropes makes them best suited for medium-duty applications.
  Q: How do I maintain the thimbles after use?
  A: Simply clean them to remove any dirt or debris and store them in a dry place to prevent corrosion. Regular inspections will help identify any wear or damage.
  Q: Can these thimbles be reused?
  A: They can be reused if they remain undamaged; however, always inspect for signs of wear before reapplying to ensure safety and reliability.
  Q: Do I need special tools to install these?
  A: Standard wire rope clamps and pliers are sufficient for securely fastening these thimbles onto wire ropes. No specialised tools are required.
