Blue Spot Tools Fine Thread G-Clamp – 100mm, 4 Inch (10031)

Blue Spot Tools Fine Thread G-Clamp

MPN: 10031

Barcode: 5028734100310

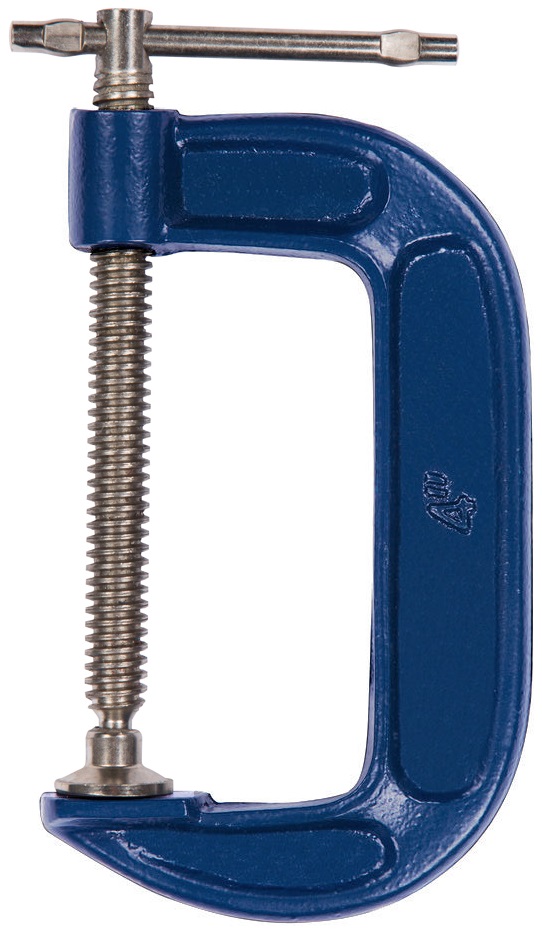

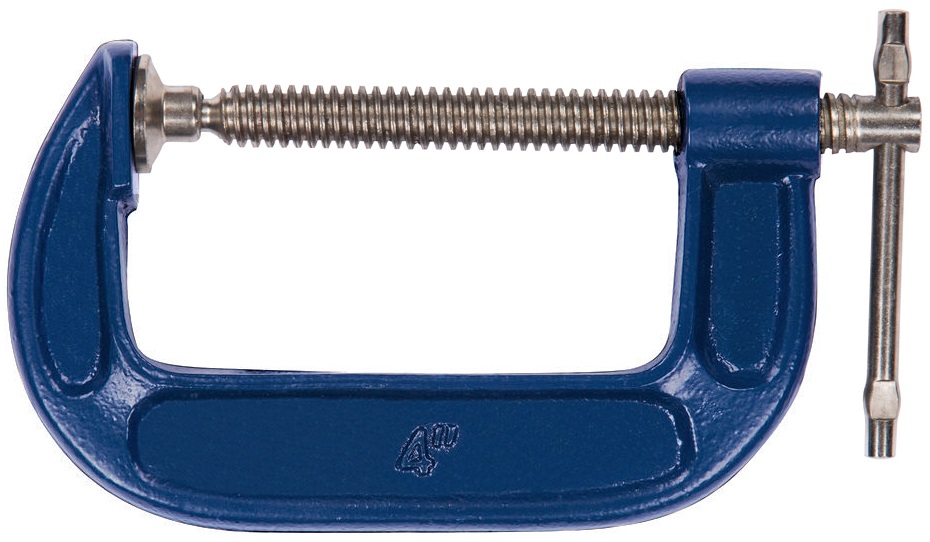

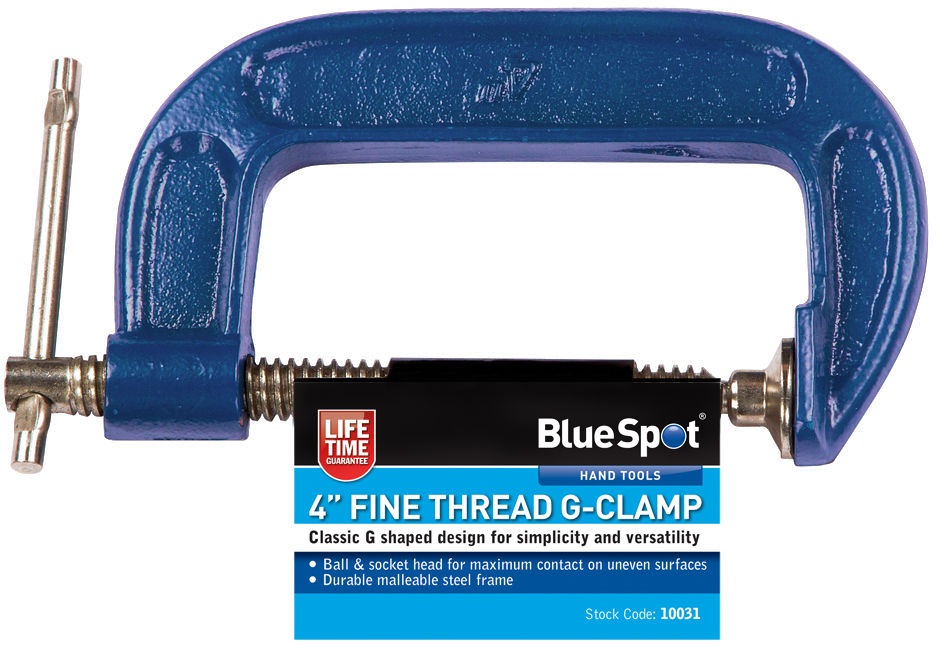

The Blue Spot Tools Fine Thread G-Clamp is a 100mm (4-inch) clamp designed for secure clamping in woodworking, metalwork, and boat building applications.

Who This Product Is For

This clamp is designed for woodworkers, metalworkers, and boat builders who require secure clamping during their projects. It suits both professional tradespeople and those undertaking personal tasks where materials need to be held firmly.

The tool is appropriate for jobs involving cutting, shaping, assembly, or repairs of wood, metal, or laminated timber, particularly where uneven surfaces may be encountered.

Key Features

• Malleable Cast Iron Frame: Provides strength and resistance for demanding applications.
• Black Phosphate Coating: Guards the thread against corrosion, improving lifespan.
• Reinforced Shoulders: Adds strength where needed, suitable for high-pressure tasks.

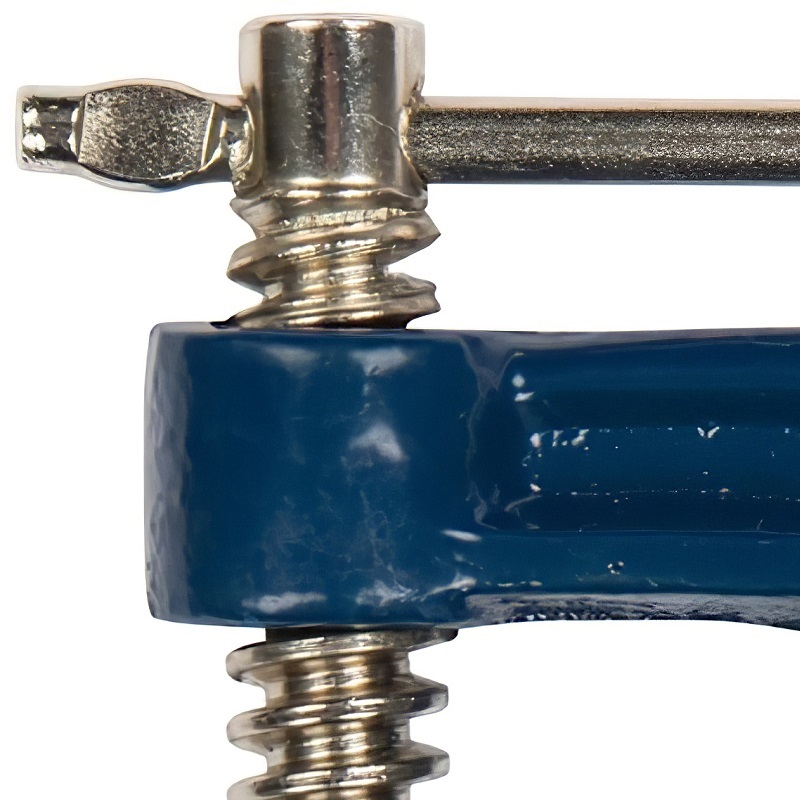

• Tommy Bar Handle: Allows for adjustments.

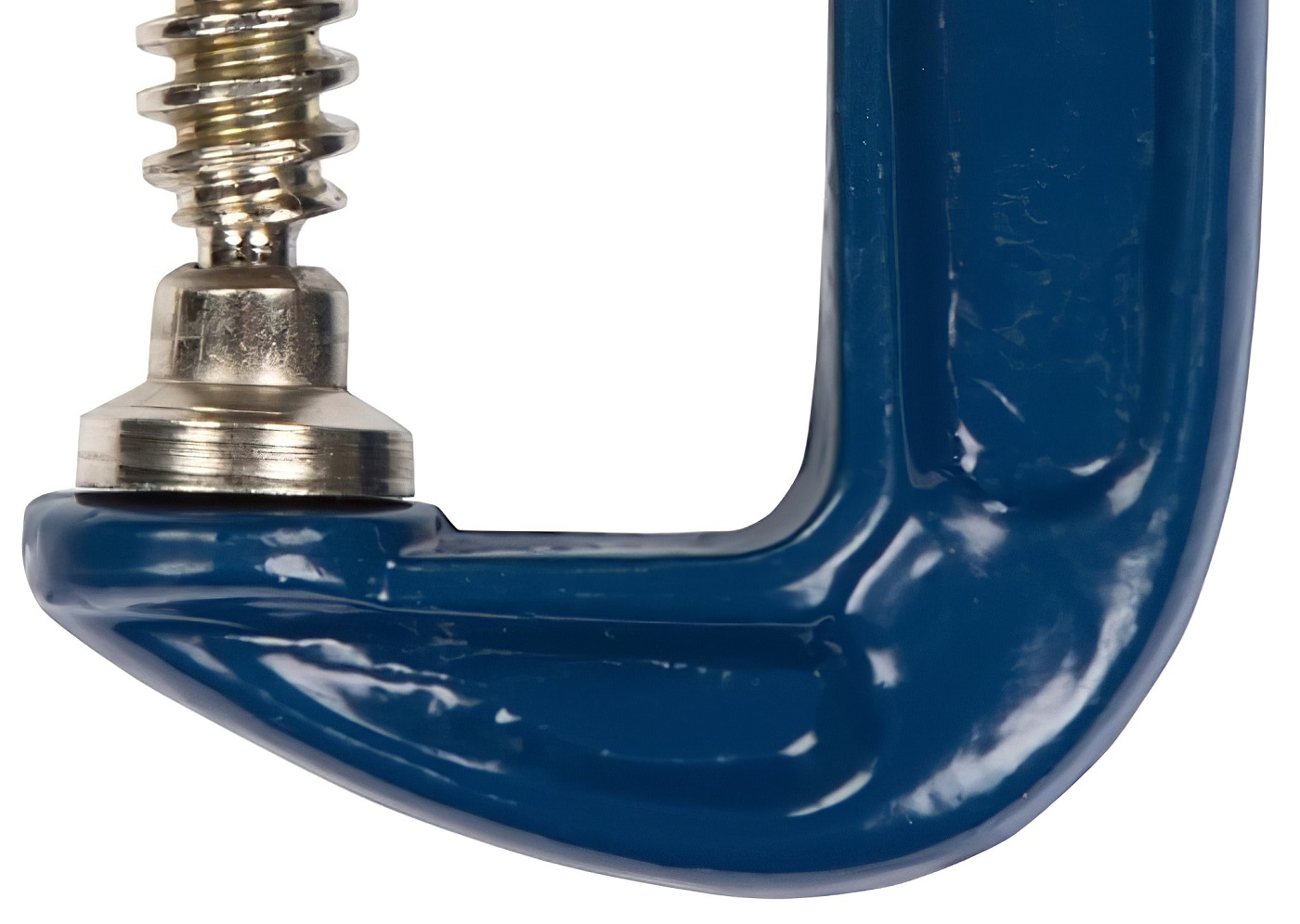

• Swivel Shoe: Conforms to uneven surfaces, protecting materials from marks.
• Ball and Socket Head: Provides maximum contact on uneven surfaces to prevent slipping.
• Fine Thread: Allows for controlled pressure, suitable for a range of clamping tasks.

Key Benefits

• Holds workpieces securely in place for consistent positioning throughout your project.
• The swivel shoe helps to protect surfaces while maintaining a firm grip.
• Adjustments are made with the Tommy Bar handle.
• The construction of the clamp reduces the need for frequent replacements, contributing to extended service life.

Practical Applications

The G-clamp is used for securing materials during tasks such as woodworking, metalworking, and boat building. It is also employed for timber laminating, repairs, or clamping metal surfaces together. The clamp can handle uneven surfaces, making it suitable for a variety of tasks.

• Woodworking Projects: Suitable for securing wood pieces during cutting, shaping, or assembly.
• Metalworking: Holds metal parts firmly while welding or cutting.
• Boat Building: Appropriate for clamping materials during boat construction and repairs.
• Laminating Timber: Keeps timber layers in place during laminating processes.
• General Repairs: Used for clamping materials during various repairs and maintenance tasks.

How This Fits Into a Typical Job

This clamp is typically used during the assembly or repair phase of a project, after materials have been cut and aligned but before joining or fixing. It holds workpieces securely in place while adhesives set, during welding operations, or while mechanical fasteners are installed.

The fine thread allows for controlled pressure application, which is important when working with delicate materials or when precise clamping force is required.

Specifications

• Clamp Size: 100mm (4-inch)
• Frame Material: Malleable cast iron
• Coating: Black phosphate
• Thread Type: Fine thread
• Handle: Tommy bar
• Shoe Type: Swivel shoe
• Shoulders: Reinforced

How to Use

1. Surface Preparation:
   • Clean the surface to remove dirt, grease, or debris to ensure a secure grip and mark positions with a MarXman marking pen.
   • Align the workpieces properly for precise clamping with a combination square.
2. Adjust the Clamp:
   • Turn the bar to adjust the clamp’s jaw to the desired size.
3. Position the Clamp:
   • Place the G-clamp onto the workpieces, ensuring the swivel shoe is in contact with the surface.
4. Tighten the Clamp:
   • Use the bar to tighten the clamp until it holds the workpieces securely in place.
5. Apply Pressure:
   • Adjust the fine thread to apply the correct amount of pressure for your task.

Storage and Maintenance Tips

• Clean the clamp after each use to prevent build-up.
• Lubricate the thread to maintain smooth operation and prevent rust.
• Store in a dry place to prevent corrosion and maintain the integrity of the frame.

Order the Blue Spot Tools Fine Thread G-Clamp today for secure clamping in all your projects, whether for professional work or personal tasks.

• Specification

  Weight	0.64 kg
  Guarantee	Manufacturers Lifetime Guarantee
  Material	Malleable cast iron, steel
  Rating	Trade
  Manufacturer	Bluespot Tools
  Type	Fine Thread G Clamp
  Colour	Blue, Steel
  Reference Code	10031
  Capacity	100mm 4 inch

• Product FAQs

  Q: What are the primary uses for a 100mm G-clamp?
  A: A 100mm (4-inch) G-clamp is typically used to hold workpieces, such as wood or metal, securely in place. This makes it suitable for carpentry, welding, furniture making, and various general assembly or repair tasks where you need to prevent movement.
  Q: How does a fine-thread G-clamp differ from a standard G-clamp?
  A: Fine-thread G-clamps allow for more precise adjustments and can apply greater clamping pressure with less effort compared to standard, coarser-thread clamps. This makes them good for delicate work or when you need a very firm hold without over-tightening.
  Q: Can this clamp be used on uneven surfaces?
  A: Yes, this clamp is designed with a swivel shoe and ball-and-socket head, which allows it to adapt and maintain maximum contact on uneven workpieces. This also helps to prevent slipping and protects surfaces from marks.
  Q: What materials is this clamping tool suitable for?
  A: This clamping tool is generally suitable for holding a variety of materials, including wood, metal, and plastic, due to its strong grip and adaptable swivel shoe.
  Q: Is this clamp appropriate for professional use?
  A: Yes, clamps of this type are widely used by professionals in various trades, including woodworking, metalworking, and construction, as they offer the necessary strength and control for demanding tasks.
  Q: How do you adjust the jaw opening of this clamp?
  A: You adjust the jaw opening by turning the Tommy Bar handle. This action moves the threaded rod, allowing you to tighten or loosen the clamp to fit your workpiece.
