Amtech Drill-Powered Liquid Transfer Pump with Clamp (V2375)

Amtech Drill Powered Liquid Transfer Pump and Clamp

MPN: V2375

Barcode: 5032759034673

This pump is a practical solution for transferring non-flammable liquids with a power drill, offering a straightforward way to move water or other non-acidic liquids over distances up to 30 metres.

Who This Product Is For

This pump suits homeowners and gardeners who need to transfer water for domestic tasks. It is designed for those who have occasional requirements for moving water around their property and already own a compatible electric drill.

The product works for jobs such as emptying paddling pools, transferring water between aquariums or ponds, and garden maintenance tasks where water needs to be moved from one area to another.

Key Features

• Durable Nylon Body: Provides robustness without adding unnecessary weight, supporting long-lasting performance.
• Efficient Delivery Distance: Capable of moving liquids up to 30 metres, suitable for larger areas or extended reach.
• Drill Collar Clamp: Secures the pump firmly to compatible drills, maintaining stability during operation.
• High Flow Rate: Transfers up to 2.4 cubic metres per hour, reducing time on repetitive tasks.
• Simple Setup: Comes with clear instructions on the packaging for quick and easy installation.
• Safe Design: Exclusively handles non-acidic and non-flammable liquids, supporting safe operation for everyday needs.

Practical Applications

The pump is suitable for transferring water for garden maintenance, draining paddling pools, and managing aquarium or pond water changes. Its design supports smooth operation while simplifying tasks that would otherwise require manual effort.

How This Fits Into a Typical Job

This pump is used during the liquid transfer phase of a task. After preparing the source and destination areas and gathering necessary hoses and connections, the pump is attached to a compatible drill to move the liquid. Once transfer is complete, it requires cleaning before storage.

The correct usage involves priming the pump with liquid before operation, maintaining the drill speed within recommended limits, and ensuring the pump does not run dry. Proper hose connections using appropriate clips are part of the setup process.

Not Suitable For

• Transferring acidic, corrosive, or flammable liquids
• Use with drills that do not have a 43mm collar and keyed chuck
• Continuous industrial or commercial applications
• Situations where the pump might run dry for extended periods

How to Use

1. Attach to Drill: Securely attach the pump to an electric drill with a 43mm collar and keyed chuck.
2. Connect Hoses: Use 19mm hoses for the inlet and outlet connections, tightly secured with a Jubilee hose clip: Jubilee 18mm–25mm hose clip.
3. Priming the Pump: Fill the pump housing with liquid before starting to prevent overheating during initial use.
4. Start Operation: Power on the drill, keeping the speed within the recommended maximum of 3400rpm.
5. Monitor Performance: Do not run the pump dry for more than 12 seconds, as this may damage the unit.
6. Post-Use Care: Detach the pump from the drill, flush it with clean water, and store it in a dry place.

Storage and Maintenance

• Rinse thoroughly after each use to avoid residue build-up, particularly if used for garden or aquarium water.
• Store in a cool, dry location to maintain its components and prevent wear from prolonged exposure to moisture.
• Regularly inspect for any signs of wear or loose fittings before use to support optimal performance.
• Use hose clip pliers when fitting or removing clips to get a secure, even seal: Blue Spot hose clip pliers.

Order this pump today and simplify your liquid transfer tasks with a tool that supports efficient operation.

• Specification

  Weight	0.5 kg
  Reference Code	V2375
  Manufacturer	Amtech

• Product FAQs

  Q: Can this pump handle hot liquids?
  A: No, it is not suitable for hot liquids. It is designed specifically for cold, non-flammable, and non-acidic liquids.
  Q: What type of drill works with this pump?
  A: This pump is compatible with electric drills featuring a 43mm collar and a keyed chuck. To ensure proper attachment, ensure your drill meets these specifications.
  Q: How do I avoid overheating the pump?
  A: Always prime the pump with liquid before starting it, and never allow it to run dry for more than 12 seconds. This helps maintain its condition and prevents overheating.
  Q: Is this pump suitable for fuel or chemicals?
  A: No, it is strictly for non-flammable and non-acidic liquids, such as water. Using it with incompatible substances could damage the pump.
  Q: Can it transfer water from a deep well?
  A: The maximum horizontal delivery distance is 30 metres. Additional equipment may be required for vertical lifting or deep wells.
  Q: What maintenance does this pump require?
  A: After each use, rinse the pump with clean water to remove any residue, especially when it is used for garden or aquarium water. Store it in a dry environment to ensure its lifespan.

• Downloads

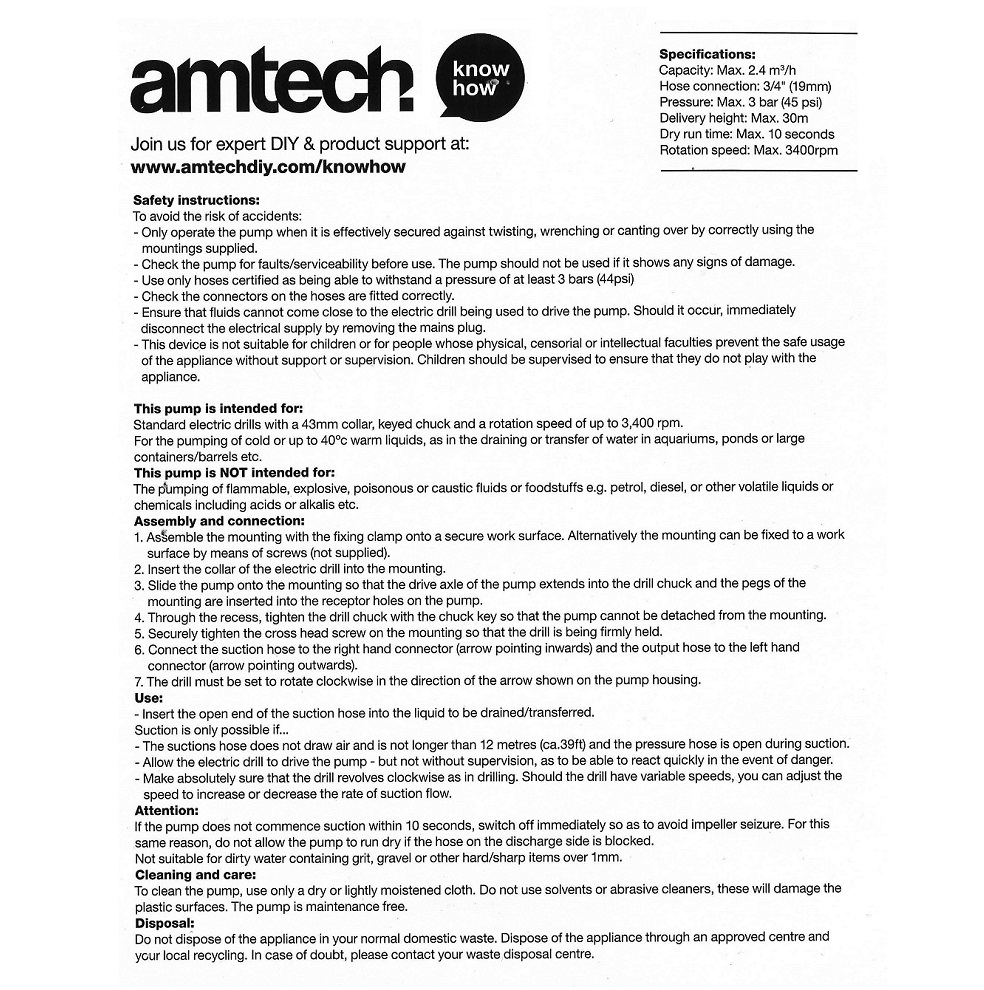

  Amtech V2375 Drill Powered Pump Instructions
